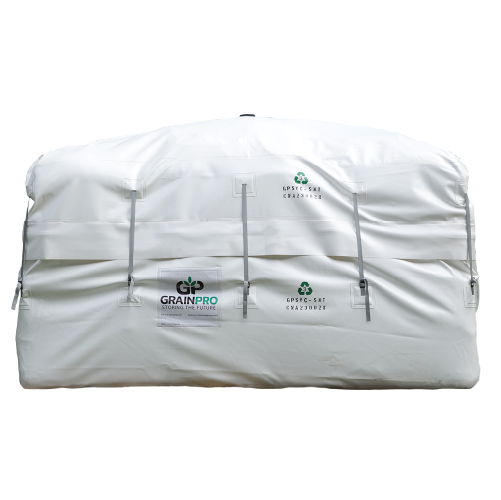

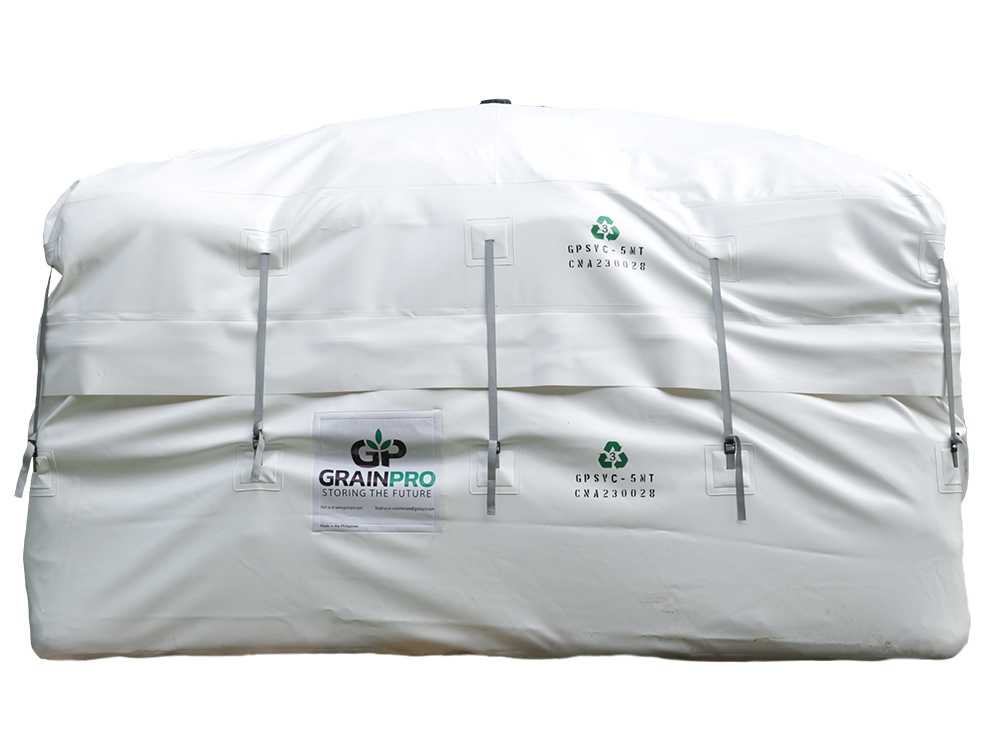

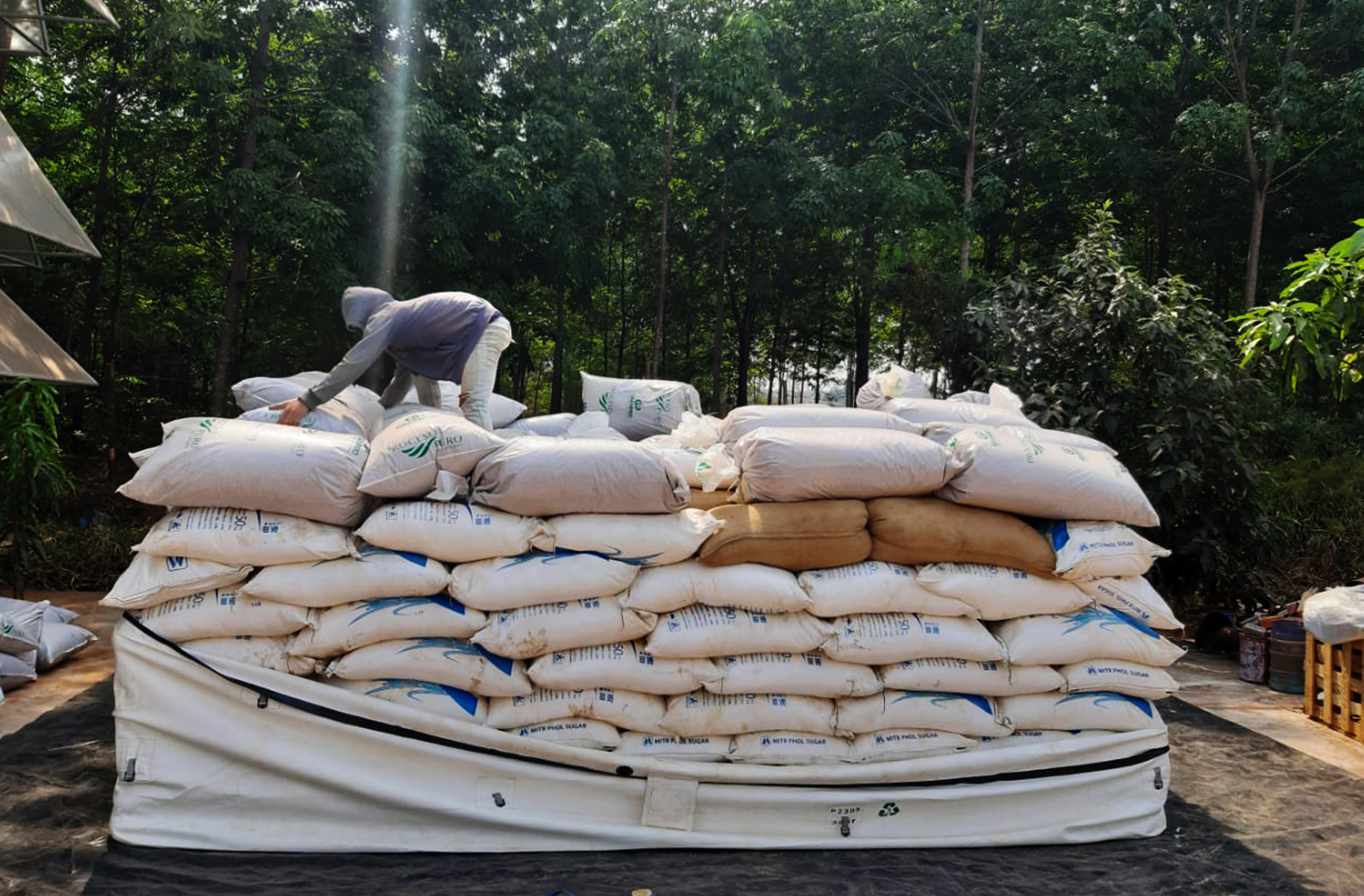

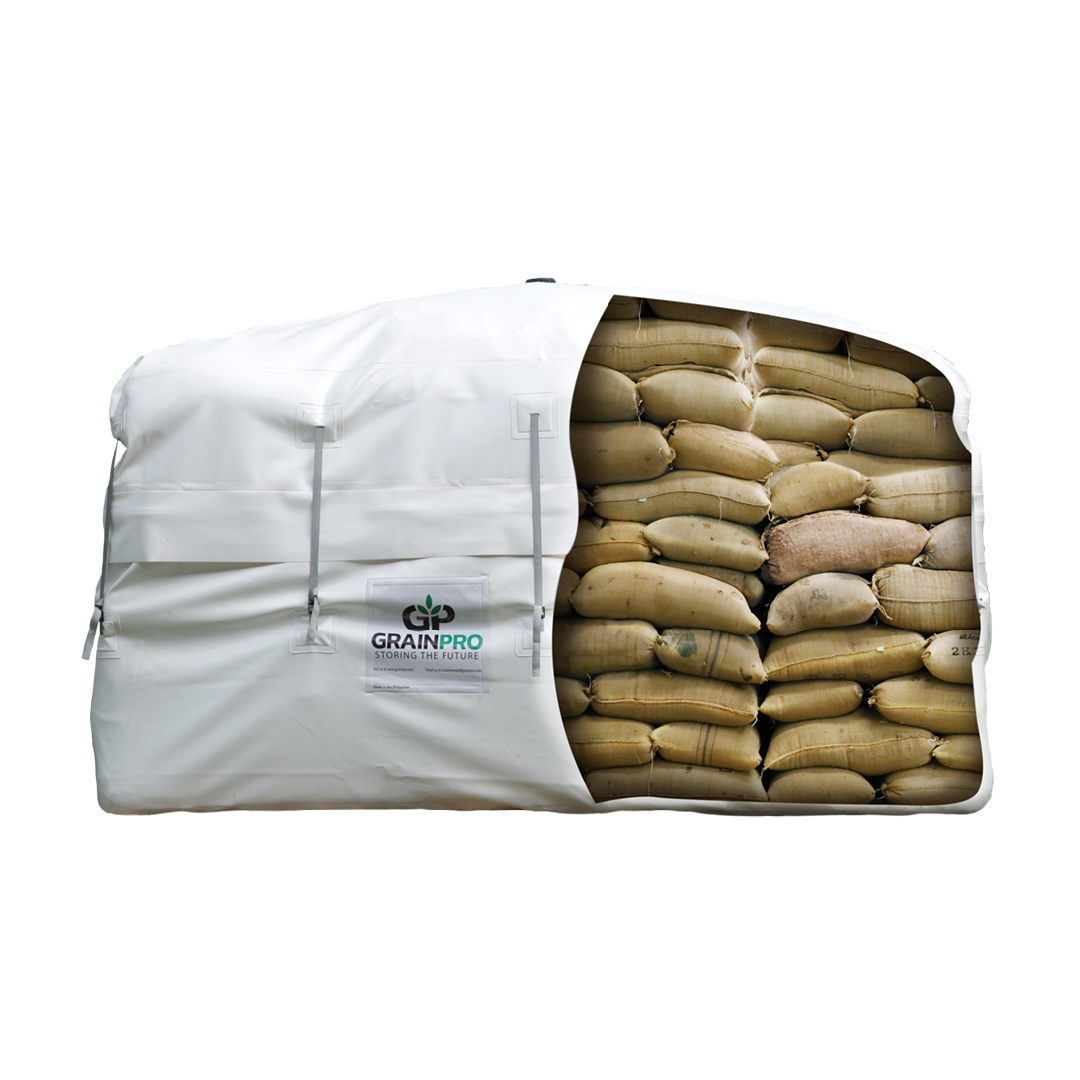

The GrainPro® Cocoon™ is a flood-protected and hermetic storage solution designed to safely store dry agricultural commodities without the need for chemicals. Made of flexible UV-resistant Polyvinyl Chloride, the GrainPro® Cocoon™ guards against rodent attacks and prevents the exchange of air and moisture. It can also protect products from being damaged by floods below its zipper line.

FEATURES

Retains the taste, color, and aroma of stored commodities

Installation requires little infrastracture

Preserves the quality of commodities throughout long period of storage

Maintains the germination and vigor of stored seeds

Weather-resistant and UV-protected, usable both indoors or outdoors

Fit for the storage of organic products

Protects against mold growth and insect infestation

Allows users to check the oxygen and relative humidity levels

Commodity can be stored at ambient temperatures instead of the cold storage method

The GrainPro® Cocoon™ This solution has low permeability to air and moisture, enabling chemical-free storage and long-term preservation. Additionally, users will be able to monitor internal oxygen and relative humidity levels during operation.

For users conducting fumigation, an optional add-on for the GrainPro® Cocoon™ is the installation of fumigation ports.

Add-on: Inlet and outlet ports are suitable for safe, organic fumigation that will protect commodities from insect infestation in an organically-acceptable procedure.

PRODUCT SPECIFICATION

GRAINPRO® COCOON™

MATERIAL

Polyvinyl Chloride (PVC)

THICKNESS

0.83 cm (0.033 inch) ± 7%

PRODUCT LIFE

15 years

APPROXIMATE CAPACITY

Product	Size	Capacity 25kg (lbs)	Capacity 50kg (lbs)
GP Cocoon Mini	0.6 MT		12 Bags
GP SVC	5 MT	200 Bags	100 Bags
GP SVC	10 MT	400 Bags	200 Bags
GP SVC	20 MT	800 Bags	400 Bags
GP SVC	50 MT	2000 Bags	1000 Bags
GP SVC	100 MT	4000 Bags	2000 Bags
GP SVC	150 MT	6000 Bags	3000 Bags
GP SVC	300 MT	12000 Bags	6000 Bags

Disclaimer: The approximate capacity provided above is based on our computation. Capacity variance based on the actual commodity stored will apply.

DIMENSIONS

Product	Size	L x W x H (m)
GP Cocoon Mini	0.6 MT	1.2 x 1.2 x 0.93
GP SVC	5 MT	2.98 x 1.65 x 1.5
GP SVC	10 MT	3.3 x 2.98 x 1.5
GP SVC	20 MT	3.98 x 3.8 x 2.0
GP SVC	50 MT	8.9 x 4.45 x 2.0 5.95 x 4.35 x 3.0
GP SVC	100 MT	8.6 x 5.8x 3.0
GP SVC	150 MT	8.9 x 8.5 x 3.0 7.5 x 6.8 x 4.48
GP SVC	300 MT	11.88 x 11.77 x 3
