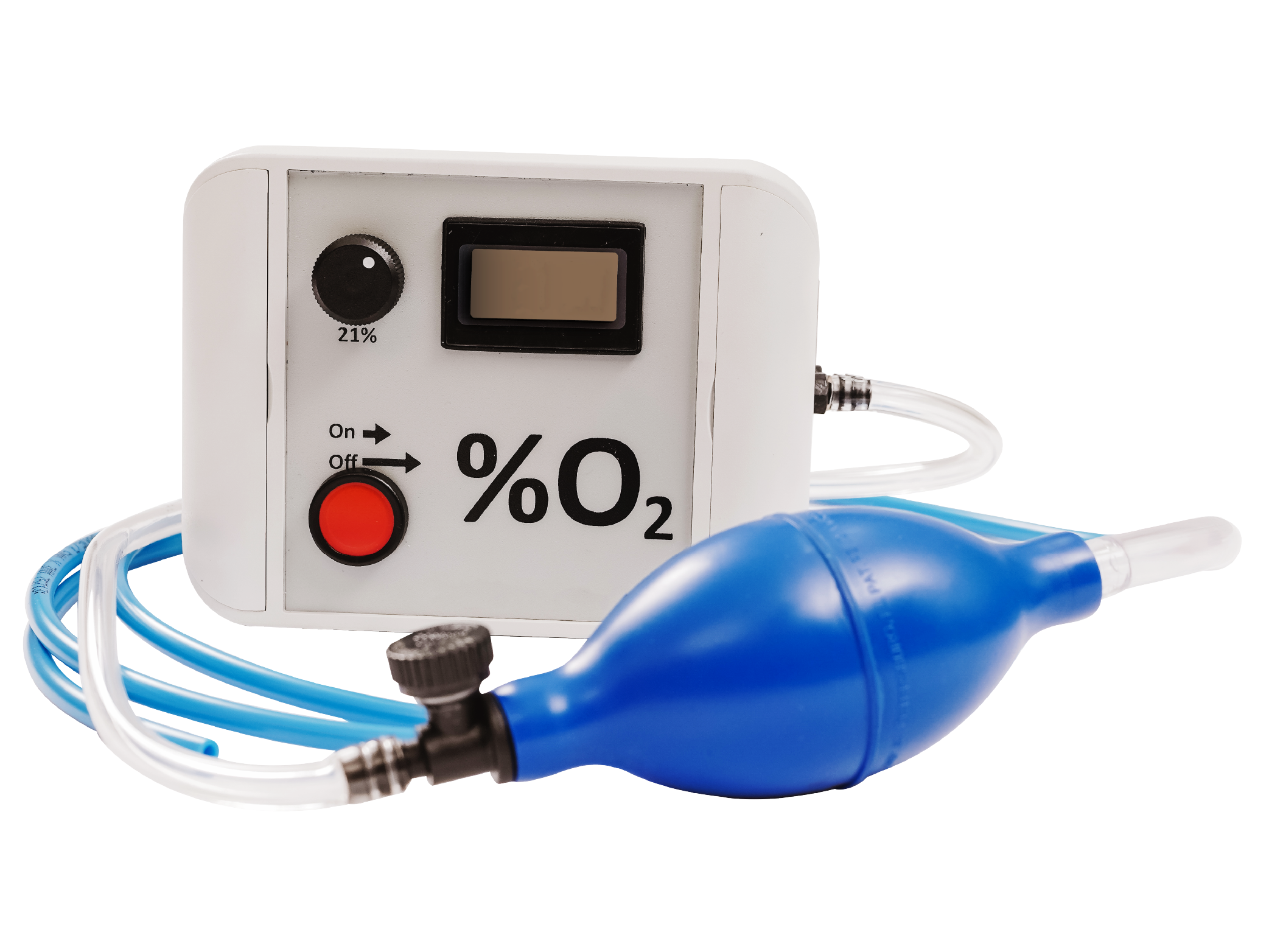

This GrainPro® Oxygen Analyzer™ is capable of measuring oxygen levels within 0 to 21% range, which is essential for modified and controlled atmospheres such as inside hermetic storage units. High concentrations of carbon dioxide do not affect the sensor’s life span and accuracy, making it perfectly suitable for monitoring gases inside GrainPro Cocoons. The analyzer can be used at high elevations without the need for any correction.
This GrainPro® Oxygen Analyzer™ is capable of measuring oxygen levels within 0 to 21% range, which is essential for modified and controlled atmospheres such as inside hermetic storage units. High concentrations of carbon dioxide do not affect the sensor’s life span and accuracy, making it perfectly suitable for monitoring gases inside GrainPro Cocoons. The analyzer can be used at high elevations without the need for any correction.
FEATURES
Portable and handy Suitable for high elevations usage
Enables oxygen measurement in modified and controlled atmposphere
LCD digital display
Includes inflating/deflating hand pump
Enables checking to control insect infestation
The design of the analyzer is kept as simple as possible to reduce the chances of breakdowns, as well as to maximize its cost-effectivity. A model with an electric pump is also available by request. This device converts O2 in the air into a digital signal that can be measured.
The GrainPro® Oxygen Analyzer™ sensor is durable with 5-year longevity.

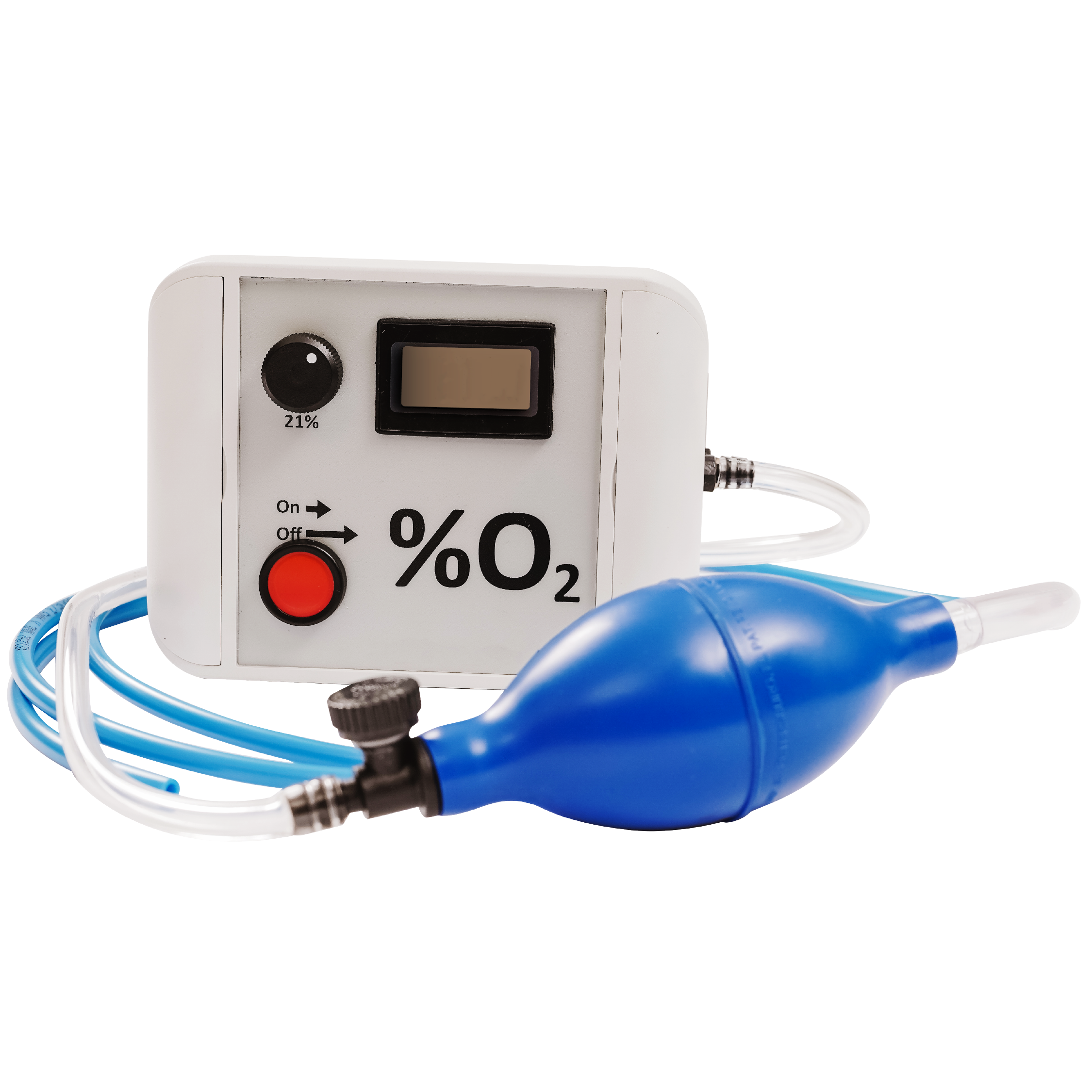

PRODUCT SPECIFICATION
|
GRAINPRO® OXYGEN ANALYZER™ |
|
|
Sensor Type |
Electro-Chemical Cell |
|
Sensor Range |
0-21% Oxygen |
|
Resolution |
0.5 at 5 min interval, 2.5 at 30 min. interval ; 6 at 4 hrs interval |
|
Operating Temperature |
0ºC to 35ºC |
|
Operating Humidity |
95% RH max non condensing |
|
Operating Flow |
0.5 - 1.5 LPM |
|
Sensor Life |
5 years |
|
Automatic Switch off |
Auto-off after 7-8 minutes |
|
Power |
9v Lithium Manganese battery |
|
Expected Life |
5 years |
|
Display Unit |
LCD digital display (with low battery indicator) |
|
Sampling Pump |
Inflating/Deflating Head Pump |
|

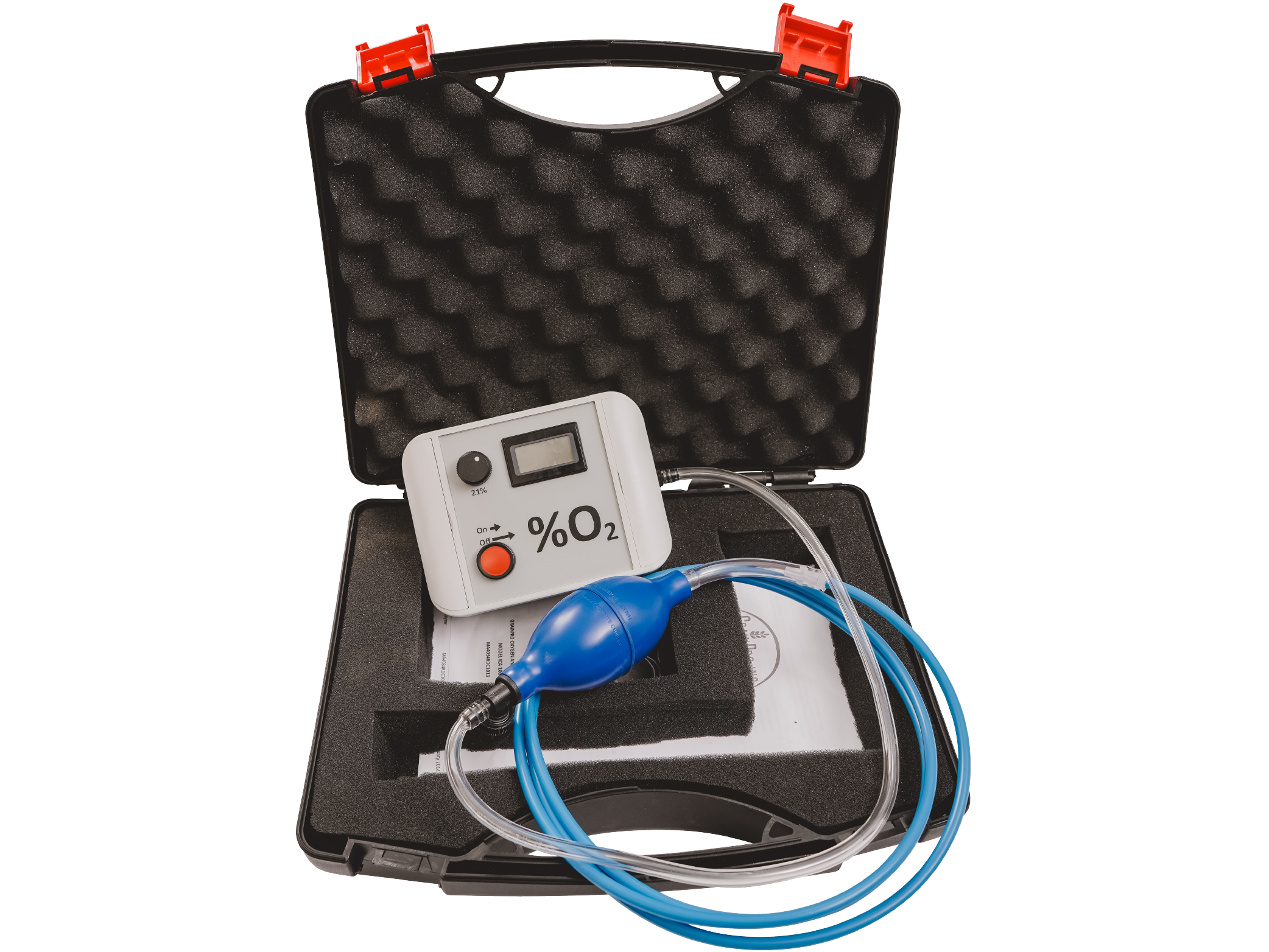

Carrying Case |
Dimension 27 x 23 x 8 cm |
|
Weight Approx. |
0.90 kg (inc. carrying case, sensor and batt. |
|
Others |
Installed with security reviews to prevent unauthorized opening |
