You already protect your grain with a Cocoon.
Now you can prove it.
GRAINPRO
COCOON SYNC
SYSTEM
Synchronize Your Storage with One Smart Solution.
What is GrainPro Cocoon Sync System?
The GrainPro® Cocoon Sync System, Powered by AniTech, is a storage system that combines the proven protection of the Cocoon™, a smart sensor, and a web-based monitoring platform to provide continuous visibility into hermetic storage conditions.
The system consists of three key components:
-

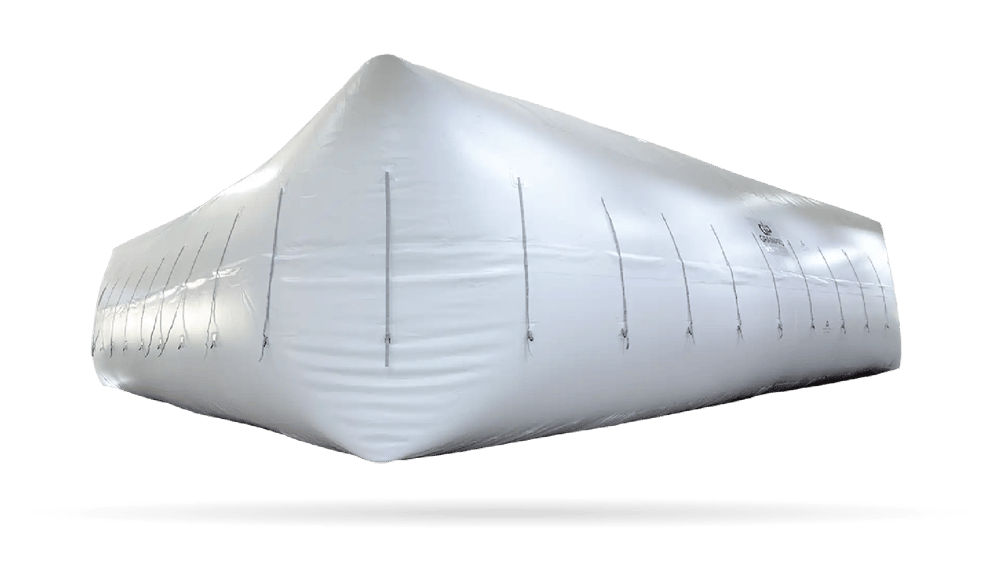

GrainPro® Cocoon™ - A hermetic storage solution that naturally protects dry agricultural commodities from insects, mold, and moisture during long-term storage.
-

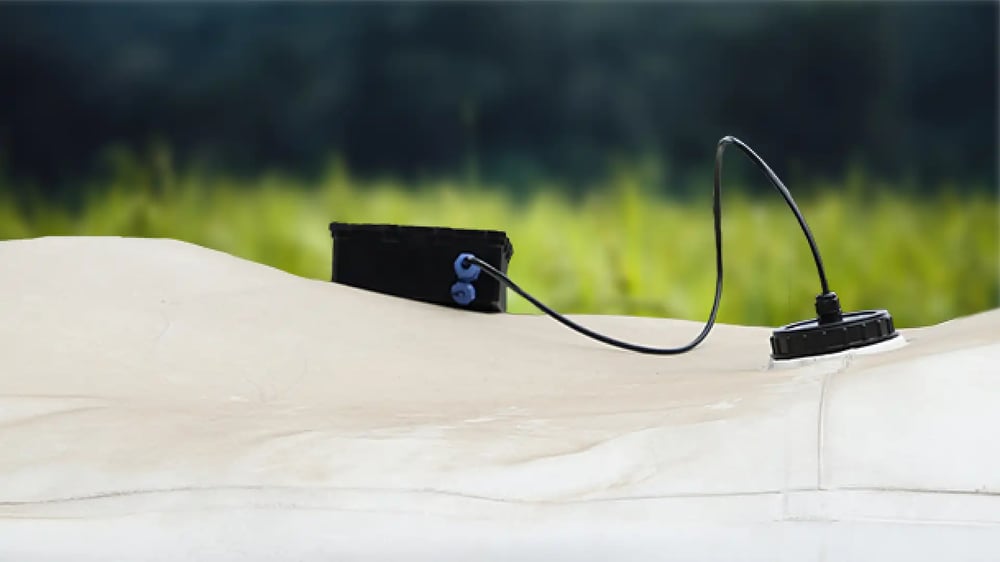

Smart Sensor - Cocoon Sync sensor designed with LoRaWAN connectivity to monitor internal storage conditions without opening the Cocoon.
-

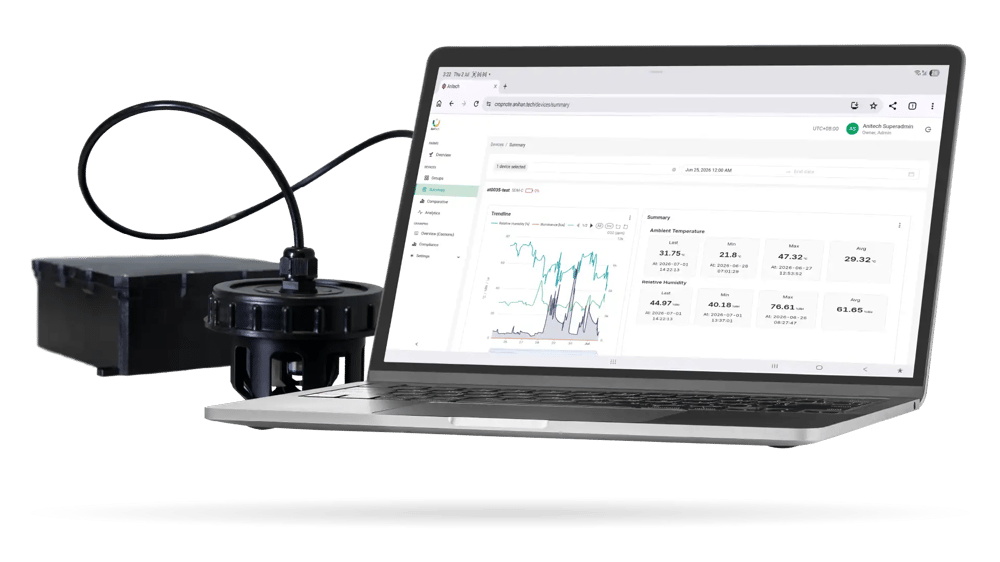

Insight Platform - Web-based monitoring dashboard for alerts and centralized management of multiple Cocoons across different storage sites.1
¹ Geo-tagging is configured by AniTech during system deployment.
Don’t open the Cocoon
to know what’s happening inside.
Protect
Detect storage risks before they become losses.
Prove
Turn hermetic storage performance into verifiable records.
Perform

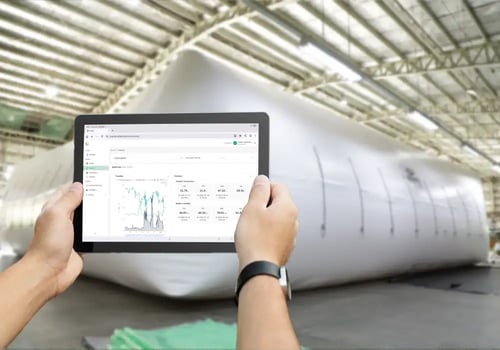

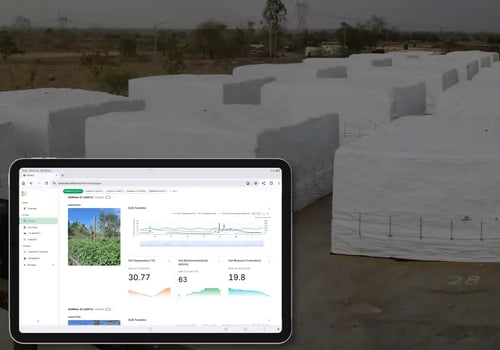

Monitor every Cocoon from one dashboard.
Differentiate
Upgrade from protected storage to smart protected storage.
Features and Benefits
Early Detection of Storage Risks
through remote monitoring of O₂, temperature, and relative humidity.

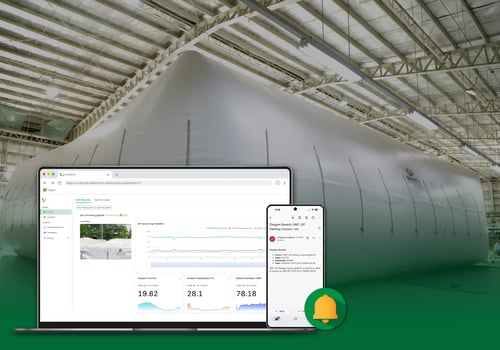

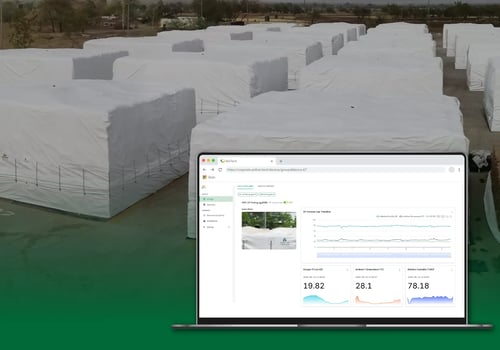

Centralized Multi-Cocoon Monitoring
from a single dashboard.

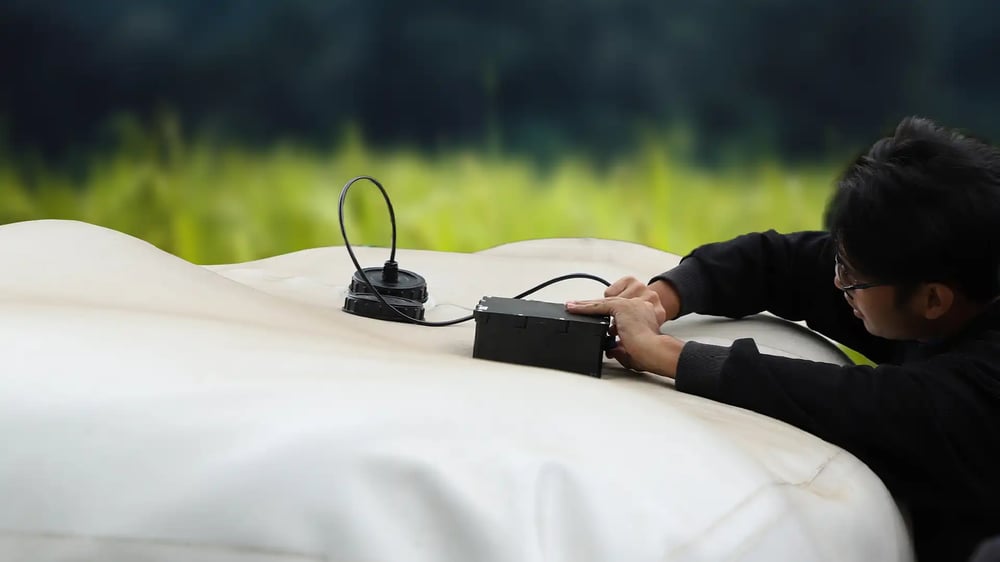

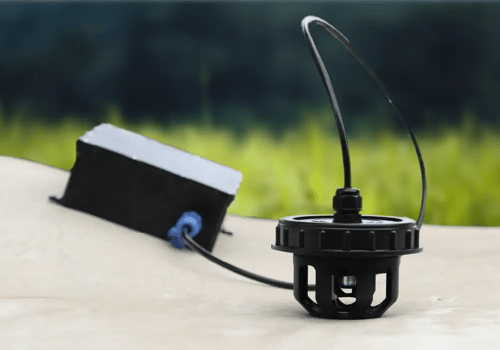

Integrated Cocoon Cap
for easy sensor installation and reliable hermetic sealing.
Geo-Tagging & Map View
for improved site visibility.
Cocoon™Based on Wheat |
||||
| Metric Tonne |
Volume m³ (ft³) |
Number of Bags |
Dimensions (L x W x H), cm (inch) |
|
| 25 kg | 50 kg | |||
| 5 | 7 (260) | 200 | 100 | 2.98 x 1.65 x 1.5 |
| 100 | 145 (5,284) | 4000 | 2000 | 8.6 x 5.8 x 3.0 |
| 150 | 227 (8,014) 228 (8,058) |
6000 | 3000 | 8.9 x 8.5 x 3.0 7.5 x 6.8 x 4.48 |
System Specifications
|
|
|
Parameter |
|
| Temperature | 0°C - 80°C (±0.2°C) |
| Relative Humidity | 0 - 100 %RH (±2 %RH) |
| Oxygen (O2) | 0 - 25 %Vol (±0.15%) |
| Polling Rate | Collects and uploads data at an hourly rate. |
| Battery Life | 15Ah Li-ion for 1-2 years of use between recharging |
| Connectivity | LoRaWAN with 4G LTE backhaul via gateway |
| Data Access | Secure digital platform, viewable remotely |
| Operating Conditions | 5°C to +75°C, 0 - 100% RH |
