FEATURES

Pre-installed system

Comes with its own Tablet

Centralized collection, multiple sensor reading

Bluetooth connection between tablet and receiver

Customized reading interval setting

Configure prompts when breaching set points

Added repeater for extra coverage

Access to data anywhere via internet

Portable and real time monitoring 24/7 made easy

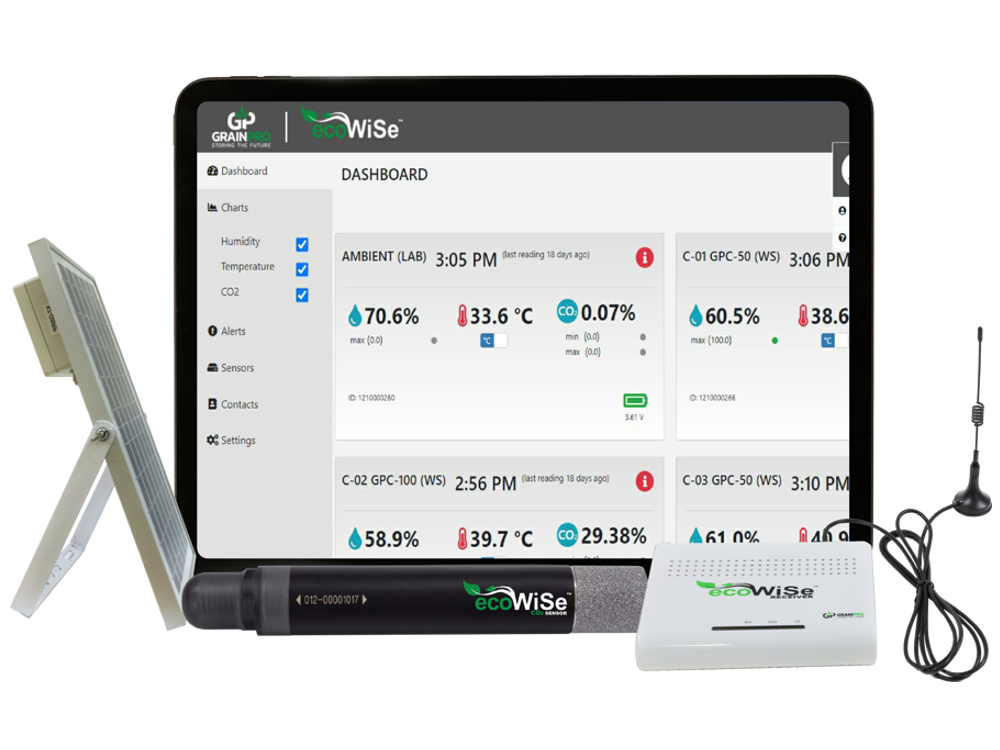

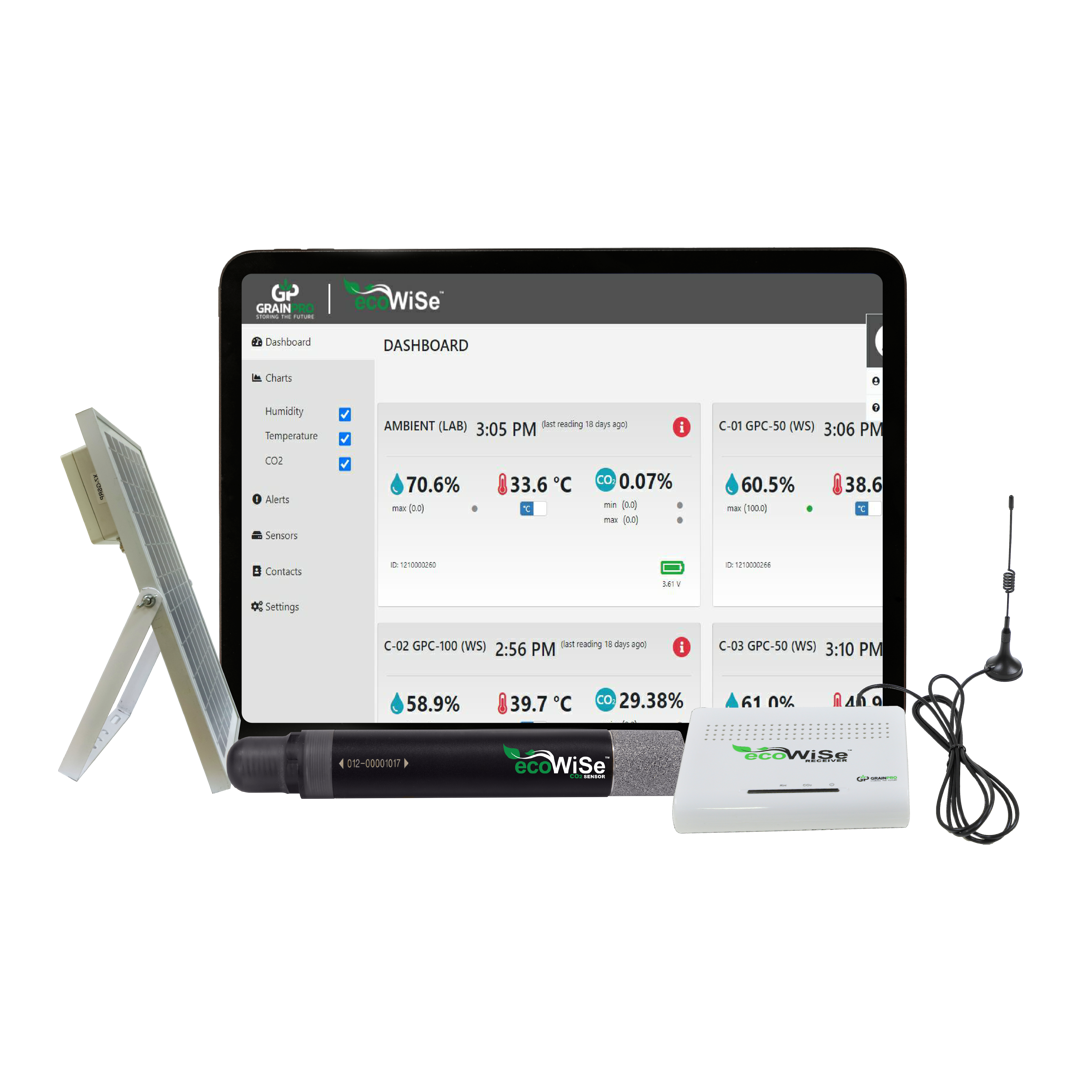

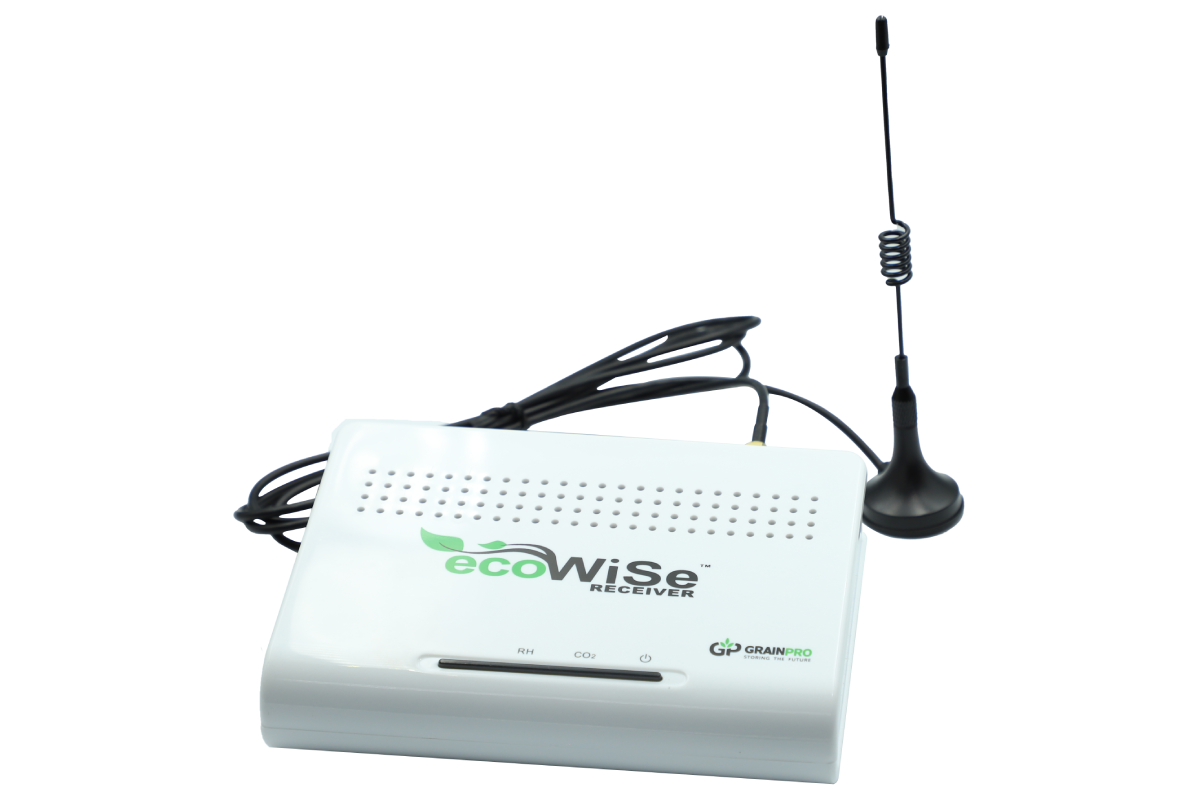

The GrainPro® EcoWiSe™ is a wireless sensing system designed to remotely monitor the environment within a hermetic storage unit in real time. The sensor collects and sends out data such as relative humidity, temperature, and carbon dioxide levels to a receiver that is wirelessly connected to a Smart Android Tablet via Bluetooth. The Android App transmits the information via the Internet to designated users who can monitor the data on their computers or smartphones through a WebApp.

Users will be notified immediately if preset critical points are reached through email. Subsequently, predictive failure analysis can be conducted in the future through data gathered by the EcoWiSe. This solution is designed to monitor crops stored in a GrainPro® Cocoon™ of any kind.

PRODUCT SPECIFICATION

GRAINPRO® ECOWISE™

INTEGRATED SENSORS

Carbon Dioxide, Humidity and Temperature

WIRELESS TRANSMISSION

Long Range (LoRa)

PRODUCT LIFE

15  years

GRAINPRO® ECOWISE™

Transmission Distance, m (Line of Sight)

5,000

Reading Capability of a Receiver, Sensors

50 to 100

Operating Life @1000 mAH yrs

0.5 at 5 min interval, 2.5 at 30 min. interval ; 6 at 4 hrs interval

Temperature Accuracy, Celsius

<0.5 (0~60) &<2 (-30~+70)

Humidity Accuracy

± 3%

Carbon Dioxide Accuracy

± 5 of reading

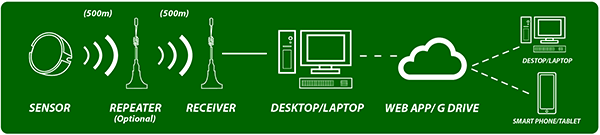

GRAINPRO® ECOWISE™ TOPOLOGY
