GrainPro Bubble Dryer

Official  Product Name: GrainPro® Solar Bubble Dryer™

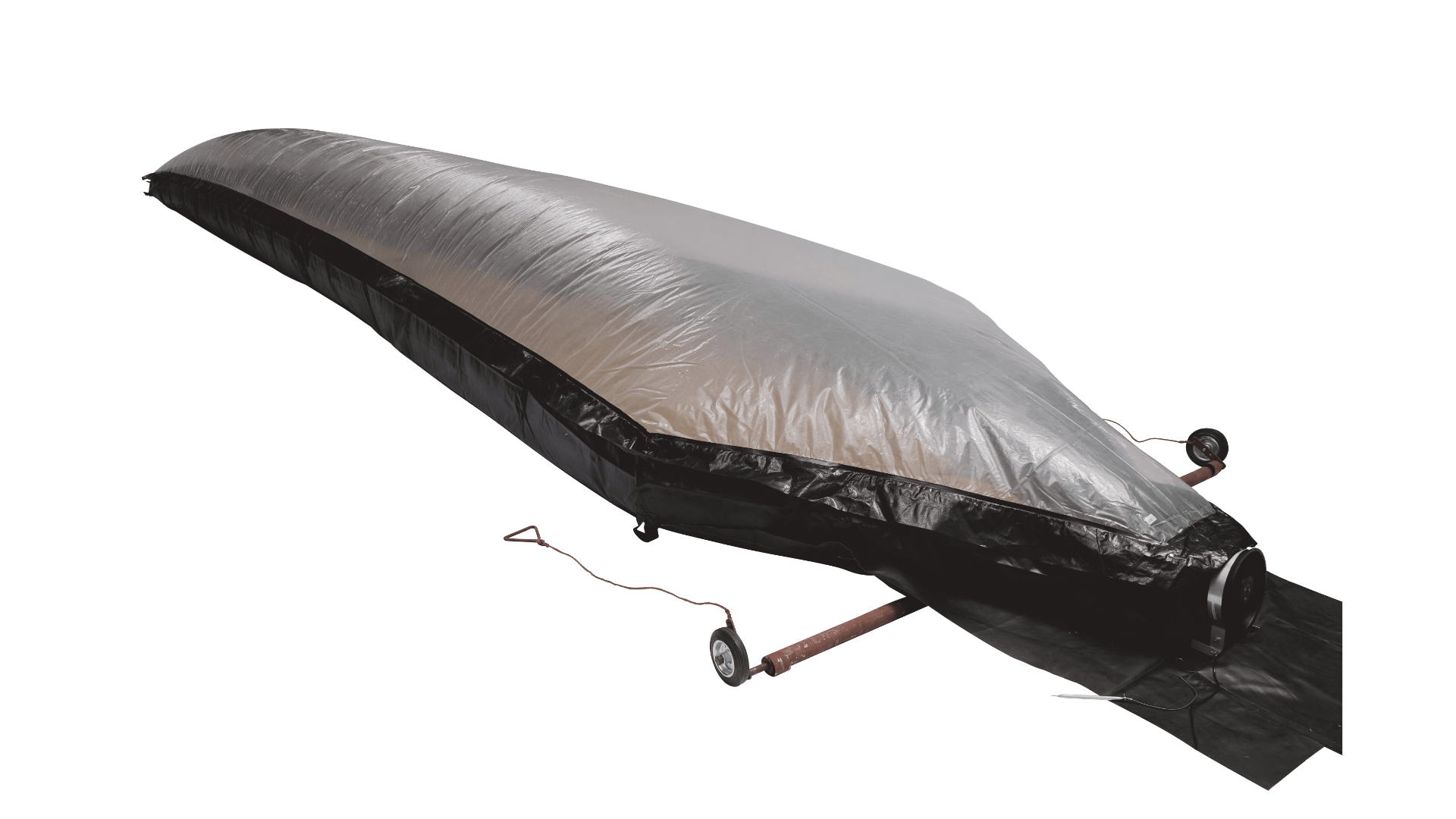

The GrainPro Bubble Dryer is a tunnel-type dryer designed to dry agricultural commodities while protecting them against sudden rains and unpredictable weather. Using heated air, the commodities’ moisture content is vaporized and pushed out by ventilators through an exhaust port.

Using this solution, commodities can be dried at an average rate of 0.5% moisture content per hour (based on paddy and corn). However, with optimal conditions of high atmospheric temperatures, drying time is about 6 to 8 hours at the moisture content of 22% to 14%.

The GrainPro Bubble Dryer comes in two different model types: (A) a solar model, operating solely through renewable solar energy, and (B) an electric model that uses electric power from the grid. Both model types provide rake mixer that can be used in all terrain and tube mixer (optional mixing device) which provide undulating motion during the mixing operation.

ADD-ONS

bubble-dryer-bed

BUBBLE DRYER BED



This portable, inflatable dryer bed works perfectly with the GrainPro Bubble Dryer. It allows high-moisture commodities to be dried at a faster rate. This is possible through the additional airflow created due to the elevated bottom of the bed.

It is made of UV-resistant PE mesh supported by pressurized PU tubes.

PRODUCT SPECIFICATIONS



  PARAMETER   SBD25 SOLAR   SBD25 ELECTRIC   SBD50 SOLAR   SBD50 ELECTRIC

  Top Cover

  UV-LDPE, Transparent   UV-LDPE, Transparent   UV-LDPE, Transparent   UV-LDPE, Transparent

  Drying Floor

  Reinforced PVC, Black   Reinforced PVC, Black   Reinforced PVC, Black   Reinforced PVC, Black

  Zipper

  Heavy Duty Zipper   Heavy Duty Zipper   Heavy Duty Zipper   Heavy Duty Zipper

  Rake Mixer

  Plastic rake with wooden  handle, 2.2m length   Plastic rake with wooden handle, 2.2m length   Plastic rake with wooden handle, 2.2m length   Plastic rake with wooden handle, 2.2m length

  Tube/Roller Mixer **

  G.I. Pipe, 2” ø w/ 2pcs. Offset box wrench, 17 x19 mm   G.I. Pipe, 2” ø w/ 2pcs. Offset box wrench, 17 x19 mm   G.I. Pipe, 2” ø w/ 2pcs. Offset box wrench, 17 x19 mm   G.I. Pipe, 2” ø w/ 2pcs. Offset   box wrench, 17 x19 mm

  Ventilator Frame

  Aluminium Bars   Aluminium Bars   Aluminium Bars   Aluminium Bars

  Exhaust Support  Frame

  Aluminium Bars   Aluminium Bars   Aluminium Bars   Aluminium Bars

  Solar Panel Frame

  Aluminium Bars   N/A   Aluminium Bars   N/A

  Ventilator

  12V DC Ventilator, 1 unit   220V AC Ventilator, 1 unit   12V DC Ventilator, 2 units   220V AC Ventilator, 2 units

  Solar Panel

  100W, 1 unit   N/A   100W, 2 units   N/A

  Wiring Harness

  #14 Auto Wire (black and red)   #14 Duplex Wire   #14 Auto Wire (black and red)   #14 Duplex Wire

  Connectors/Terminals

  MC4, Bullet, Terminal block, Alligator Clip   N/A   MC4, Bullet, Terminal block, Alligator Clip   N/A

  Battery**

  AGM (Absorbed Glass Mat) Battery 12V, 70 AH   N/A   AGM (Absorbed Glass Mat) Battery 12V, 70 AH   N/A

  Transformers*

  N/A   Step up (110-220V)   N/A   Step up (110-220V)

  Dimension (LxW)

  15.0x2.0 m (49.21x6.56 ft)   15.0x2.0 m (49.49x6.56 ft)   26.0x2.0 m (85.3x6.56 ft)   26.0x2.0 m (85.3x6.56 ft)

  Drying Area

  25.00 m2 (269 ft2   25.00 m2 (269 ft2)   50.0 m2 (538.2 ft2)   50.0 m2 (538.2 ft2)

  Capacity (based on Paddy)

  500 kg (1,102.31 lbs)   500 kg (1,102.31 lbs)   1,000 kg (2,204.62 lbs)   1,000 kg (2,204.62 lbs)
